HTG 610U
The universal precision grinder
learn more

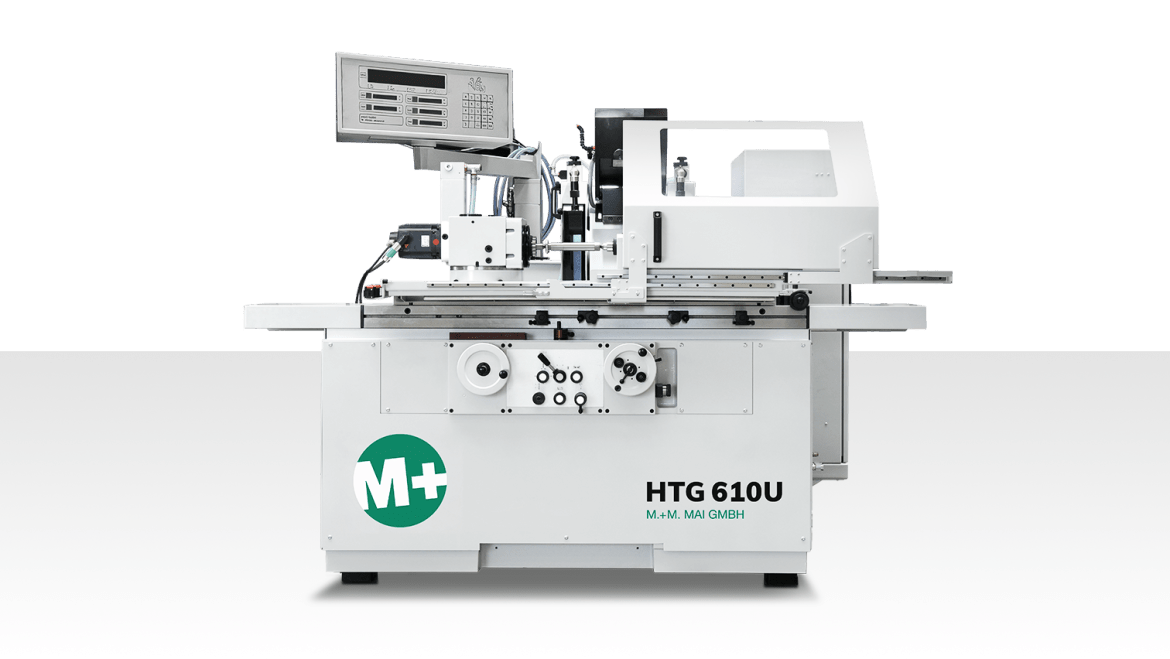

HTG 610U: Compact Universal cylindrical grinding machine for workpieces up to 600 mm

The HTG 610U significantly expands the possibilities of classic cylindrical grinding: in addition to external cylindrical grinding, it also enables internal cylindrical grinding processes as well as the grinding of conical geometries. This makes it the ideal solution for users who want to cover different workpieces and machining tasks on one machine.

Workhead
  • With MT5 (roller-bearing mounted)
  • With MT4 (hydrodynamic bearings): very accurate concentricity <= 0,001 mm
  • Alternatively with MT4 high-precision: high-precision concentricity <= 0,0005 mm
Hydrodynamic wheelhead
  • Good damping properties
  • Self-centering with high-precision concentricity
  • Long service life
Slide guideways
  • High process stability thanks to high-precision V and flat guideways
Cast iron machine bed
  • Distortion-free, thermally stable and vibration-damping
  • Cubic, heavily ribbed
Tailstock MT3
  • Adjustable quill pressure
  • Manual or automatic operation (optional)
  • Taper correction +/- 0,02 mm (optional)

Thanks to its robust machine structure and high-quality guideways, the HTG 610U ensures smooth machining and high dimensional accuracy – even on larger and longer workpieces. The solidly built, heavily ribbed machine base made of stress-relief annealed cast iron ensures high rigidity and effective vibration damping.

The combination of versatility and stability makes the machine particularly economical in use: different machining types can be implemented without changing machines, which reduces setup times and shortens lead times.

The good accessibility to all functional areas facilitates setup and maintenance in daily operation. Thanks to a wide range of application-oriented extensions, the HTG 610U can be optimally adapted to different workpieces and complex machining requirements.

Technical Information

Main Data
Distance between centers in mm 680
Center height standard (optional) in mm 100 (150)
Grinding length in mm 620
Grindable workpiece diameter
Max. workpiece diameter with full wheel standard (optional) in mm 198 (298)
Min. workpiece diameter with worn wheel in mm 1
Max. workpiece weight between centers (optional) in kg 80
Max. load for cantilever grinding (optional) in Nm 50
Wheelhead
Grinding wheel diameter in mm L: 350 / R: 250
Grinding wheel width in mm L: 50 / R: 25
Number of grinding tools 2
Motor power in kW 3
Grinding wheel peripheral speed in m/s 35
X-axis travel in mm 45
Rapid feed travel in mm 40
Automatic infeed travel max. in mm 1,2
Automatic infeed travel max. in mm per stroke 0,05
Spark-out time in seconds 1 - 30
Workhead
Mounting taper MT5
Workpiece table swivel range max. +30 ° / -45 °
Speed range in min-1 0 - 500
Tailstock
Mounting taper MT3
Quill stroke (optional) in mm 20 (60 / 120)
Longitudinal slide
Z-axis travel in mm 620
Max. Z-axis speed in m/min. 0 - 5
Workpiece table swivel range max. +/- 11 °
General Data
Total electrical connected load in kW 8
Machine weight in kg (approx.) 2.600

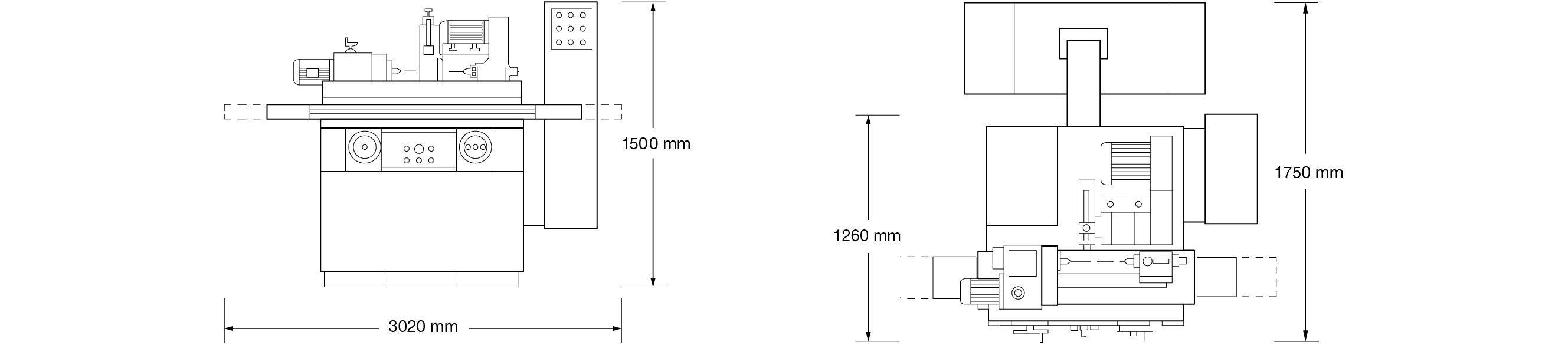

Length x depth x height in mm 3.020 x 1.260 x 1.500

After-Sales-Services

To support our customers in getting the most out of our machines, we offer them tailored After-Sales-Services. In addition to our Aktiv+ package for preventive maintenance & servicing, this also includes instructing operating personnel in the use of our machines. Regular staff training ensures that the machines are always used optimally and that smooth operation is guaranteed even with new employees. If required, training can also be carried out on site at the customer's premises.
